MTRC Tsim Sha Tsui Station ECS PLC System

Print】【Back to Mice Project

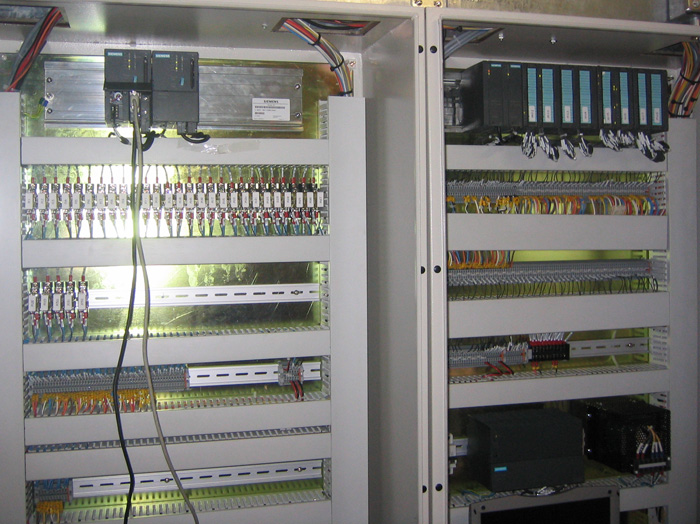

    MTRC Tsim Sha Tsui Station has total 4 PLCs were installed for environmental monitoring and control which including chiller plant system, EAF, FAF, AHU and PAU system. Operator can operate and monitor all the system through touch panel. It allows effective control of systems in the station for increasing energy efficiency, temperature conditioning and air quality control, etc.

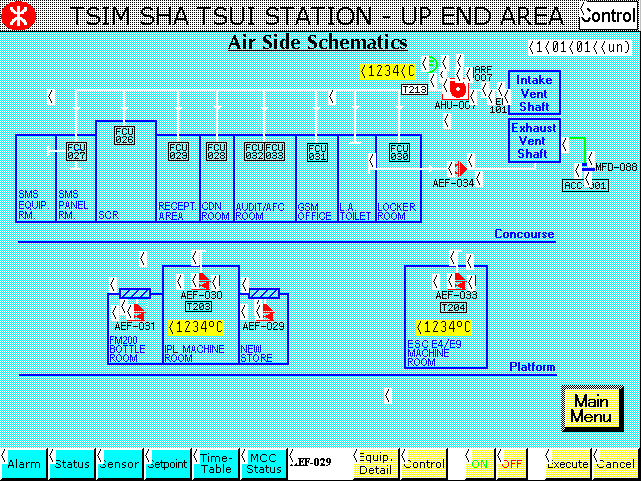

Air Side Schematics

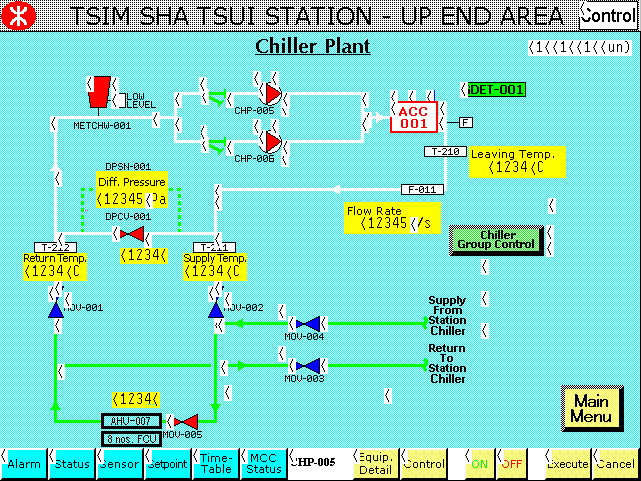

Chiller Plant
