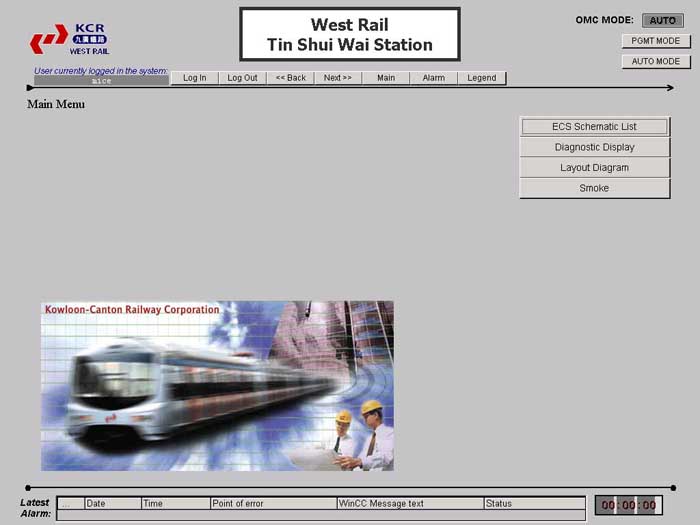

Tin Shui Wai Station is one of the stations of KCRC West Rail. Total 6 PLCs were installed for environmental monitoring and control which including chiller plant system, EAF, FAF, AHU and PAU system. Operator can operate and monitor all the system through HMI WinCC. It allows effective control of systems in the station for increasing energy efficiency, temperature conditioning and air quality control, etc.

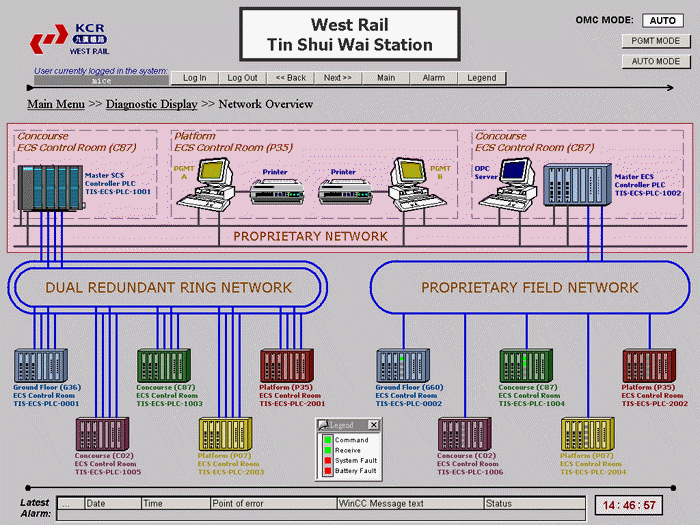

Network Overview

FM200 Purge/Extraction System

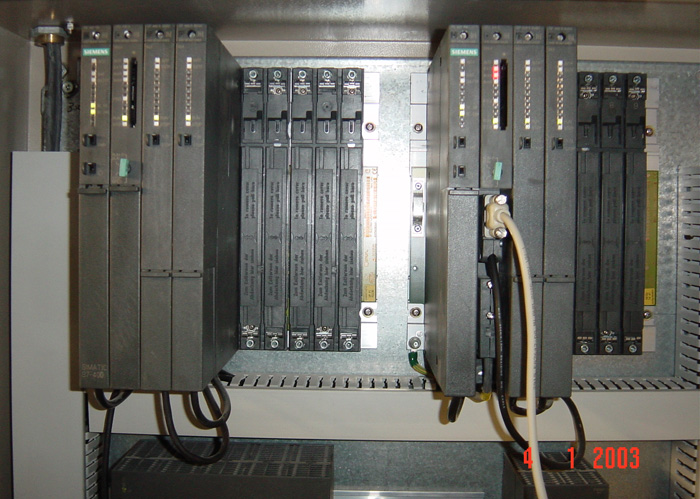

S7-400PLC
