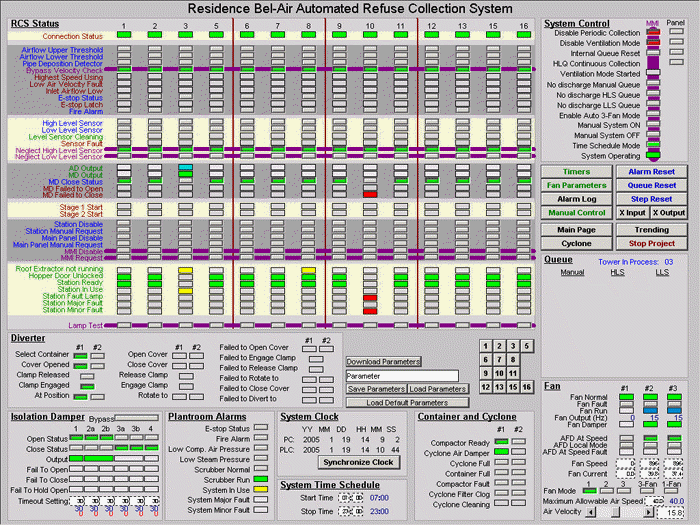

The Automated Refuse Collection System makes use of powerful fans to pull out the refuses from 14 towers to a cyclone. After being compacted by a compactor, the refuses will be collected in a container. Finally, the refuses will be carried away by trucks. The entire process is performed automatically in this system. The staffs only need to put the refuses into pipe of each tower through a hopper door. This system consists of a set of computer, a main panel and 14 remote panels (14 towers totally). The computer is used to monitor the system operation, to set parameters and to monitor faults. The main panel and the remote panels are made up of colour light bulbs, indicating the status of signals in the system.

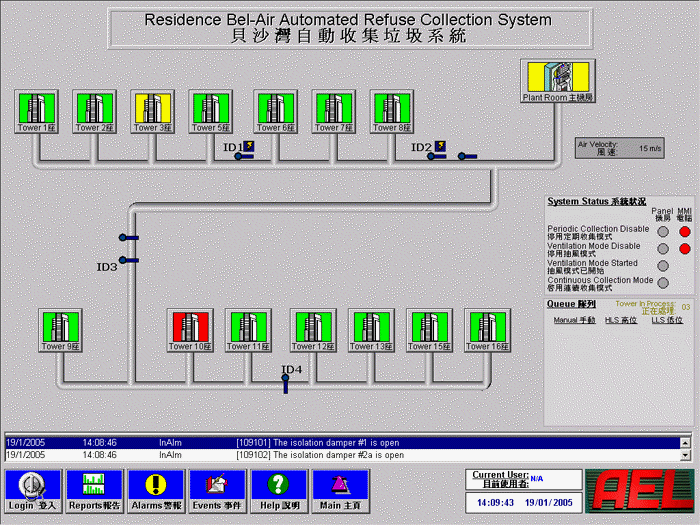

Main Page

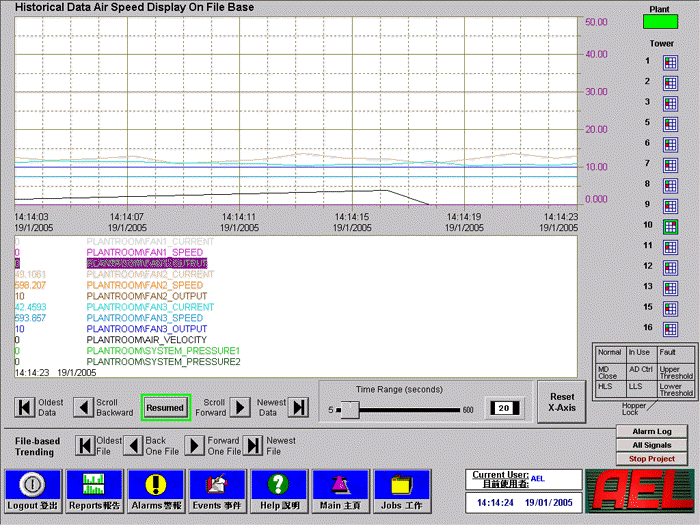

Trending

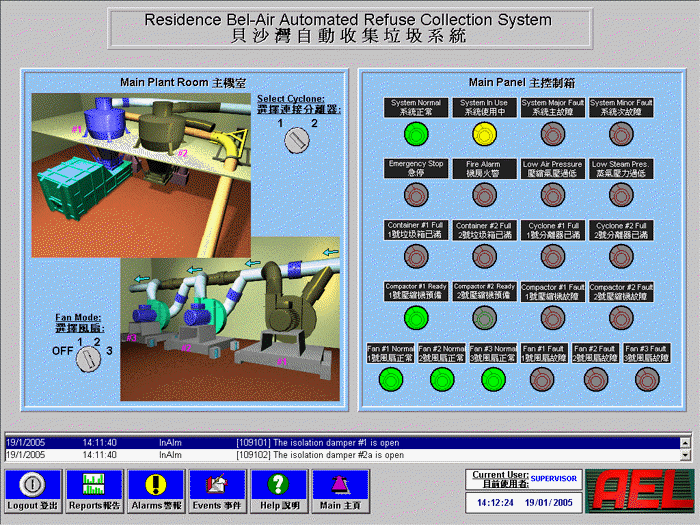

Control Panel

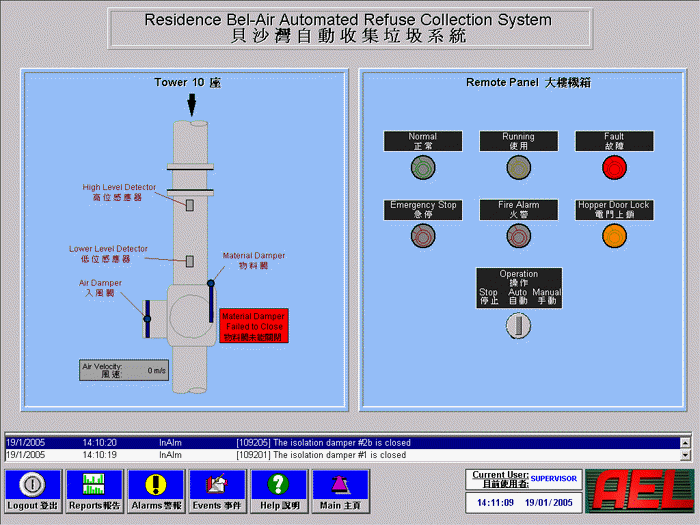

Remote Panel
