Wetland Pumping Station Control System

Print】【Back to Mice Project

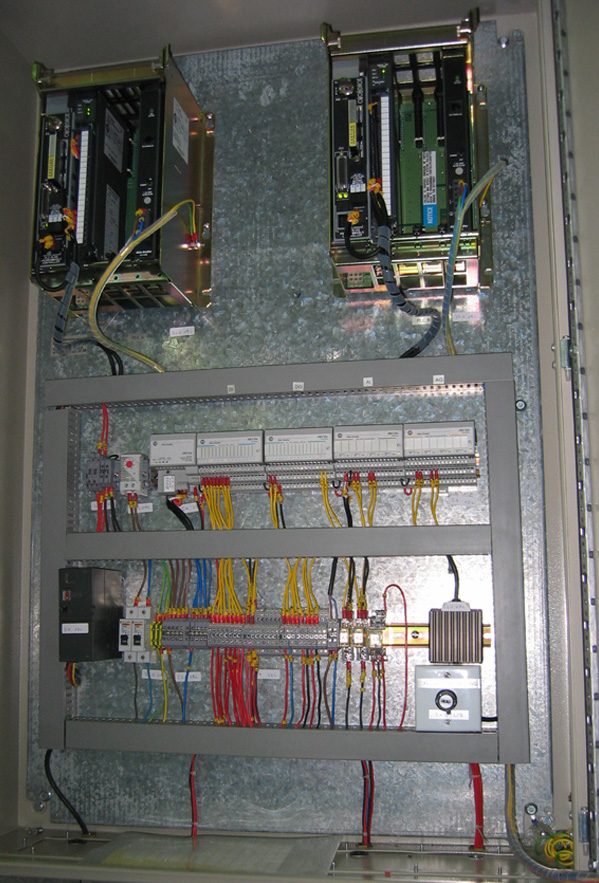

    The pumpsets PLC control panel consists of remote I/O units and redundant PLC system.  PLC consists of the RIO connection port for the fast access in the backbone network. It provides a much more reliable system for the whole process plant automation. The PLC system is responsible for the pump start and stop operation based on the level sensor. Also, the speed of the pump is modulated according to the flow rate setting by the user.

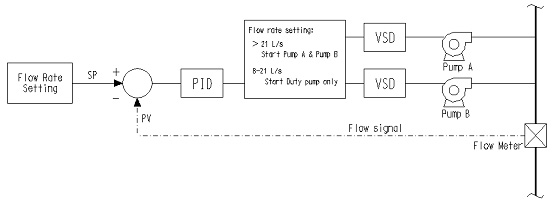

Water Pump Control

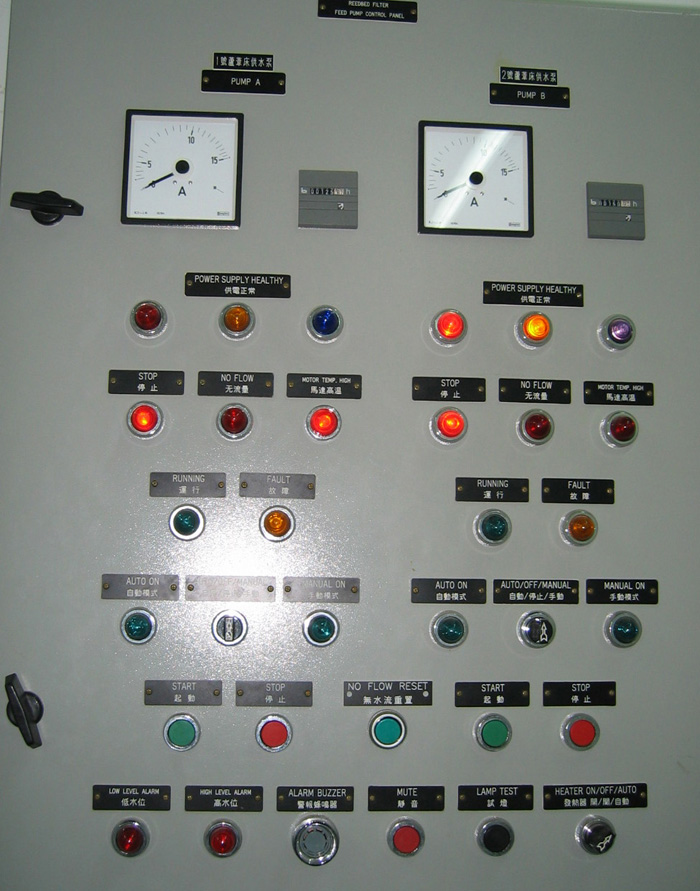

Control Panel

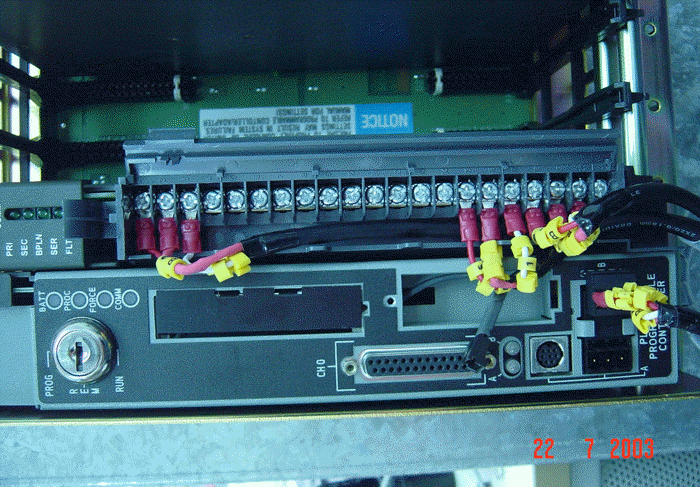

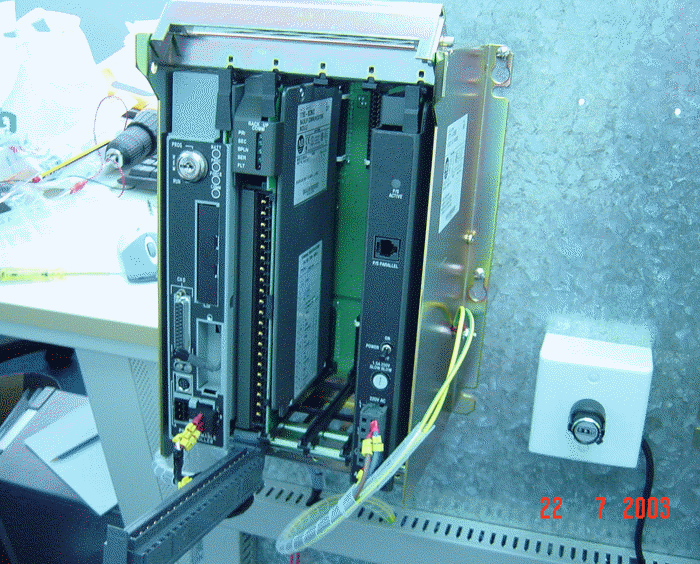

A.B.PLC
